BW Management sebuah GameNet dan Warnet

Pertama siapkan 3 buah NIC masing-masing:
ether1=119.67.xx.xx (IP Public)
ether2=192.168.123.254/24 (IP Lan)
ether3=192.168.10.5/24 (IP ke proxy external)
Asumsi router sudah jalan,baik remote dns maupun masquerade nya
Kedua bikin BW management menggunakan queue tree supaya pembagian bw merata tidak saling rebutan jika salah satu klien sedang rakus membuka tab browser,tentu masih ada jaminan bw buat semua klien untuk bermain game.
A. Bikin mangle terlebih dahulu untuk menandai packet-packet yang akan di manage
menandai packet ICMP
/ip firewall mangle
add action=mark-connection chain=prerouting comment=ICMP disabled=no new-connection-mark=ICMP-CM \
passthrough=yes protocol=icmp
add action=mark-connection chain=forward comment="" disabled=no new-connection-mark=ICMP-CM passthrough=\
yes protocol=icmp
add action=change-dscp chain=prerouting comment="" connection-mark=ICMP-CM disabled=no new-dscp=5 \
protocol=icmp
add action=change-dscp chain=forward comment="" connection-mark=ICMP-CM disabled=no new-dscp=5 protocol=\
icmp
add action=mark-packet chain=prerouting comment="" connection-mark=ICMP-CM disabled=no new-packet-mark=\
PRE-ICMP-PM passthrough=no protocol=icmp
add action=mark-packet chain=forward comment="" connection-mark=ICMP-CM disabled=no new-packet-mark=\
POST-ICMP-PM passthrough=no protocol=icmp


menandai Call All Connection dan bypass ICMP


/ip firewall mangle
add action=mark-connection chain=prerouting comment=C.ALL-CN disabled=no new-connection-mark=ALL-CN-PRE \
passthrough=yes protocol=!icmp src-address=192.168.123.0/24
add action=mark-connection chain=forward comment="" disabled=no dst-address=192.168.123.0/24 \
new-connection-mark=ALL-CN-POST passthrough=yes protocol=!icmp

add action=mark-packet chain=prerouting comment=C.ALL-P connection-mark=ALL-CN-PRE disabled=no \
new-packet-mark=C.ALL-PRE passthrough=yes src-address=192.168.123.0/24
add action=mark-packet chain=forward comment="" connection-mark=ALL-CN-POST disabled=no dst-address=\
192.168.123.0/24 new-packet-mark=C.ALL-POST passthrough=yes


setelah packet All Connection (ALL-CN) tertandai seharusnya MikroTik sudah mengcounter traffic

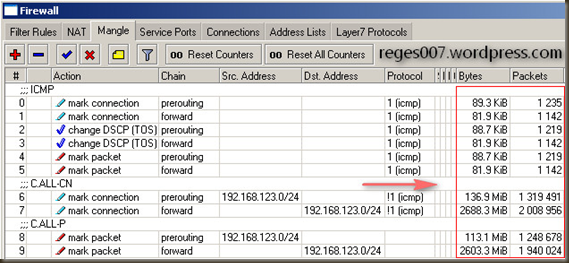

lihat pada gambar :



B. Selanjutnya tinggal bikin mangle per klien ini saya buat sampel 2 IP saja

selanjutnya tinggal menyesuaikan dan mengurutkan ke masing-masing network anda


menandai klien IP 192.168.123.245


/ip firewall mangle
add action=mark-packet chain=prerouting comment=WS245 connection-mark=ALL-CN-PRE disabled=no \
new-packet-mark=WS245-PRE passthrough=no src-address=192.168.123.245
add action=mark-packet chain=forward comment="" connection-mark=ALL-CN-POST disabled=no dst-address=\
192.168.123.245 new-packet-mark=WS245-POST passthrough=no


menandai klien IP 192.168.123.246


/ip firewall mangle
add action=mark-packet chain=prerouting comment=WS246 connection-mark=ALL-CN-PRE disabled=no \
new-packet-mark=WS246-PRE passthrough=no src-address=192.168.123.246
add action=mark-packet chain=forward comment="" connection-mark=ALL-CN-POST disabled=no dst-address=\
192.168.123.246 new-packet-mark=WS246-POST passthrough=no


selesai sudah kita bikin manglenya :)





C. Ok di lanjutgan dengan membuat queue tree ,value disini jangan di jadikan petokan

silahkan rubah valuenya sesuai bw yang tersedia di network anda.


ini saya ambil contoh dengan bw dari isp 3M di bagi rata ke klien max masing-masing mendapat 384k download 256k upload dengan jaminan bw 128k untuk menjaga biar yang main game tidak terganggu


/queue tree
add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=0 max-limit=3M name=ALL-DN \
packet-mark=C.ALL-POST parent=global-out priority=8
add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=0 max-limit=1M name=ALL-UP \
packet-mark=C.ALL-PRE parent=global-in priority=8

add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=128k max-limit=384k name=WS245-DN \
packet-mark=WS245-POST parent=ALL-DN priority=8 queue=default

add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=128k max-limit=384k name=WS246-DN \
packet-mark=WS246-POST parent=ALL-DN priority=8 queue=default

add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=128k max-limit=256k name=WS245-UP \
packet-mark=WS245-PRE parent=ALL-UP priority=8 queue=default

add burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=128k max-limit=256k name=WS246-UP \
packet-mark=WS246-PRE parent=ALL-UP priority=8 queue=default


hasilnya screenshootnya :




Sudah selesai silahkan anda test di salah satu klien


jika traffic lagi sepi klien bisa mendapat bw lebih dari 384k dengan begitu pelanggan akan merasa puas karena browsing lebih lancar





sampai ketemu lagi di firewall filter untuk menyaring packet downloader dan redirect to proxy external.
